*If door lock area has metal surface, need to charge additional processing fee around $400.

*All the above additional charges are for reference only, subject to the quoted price of Shun Hing Installation Master.

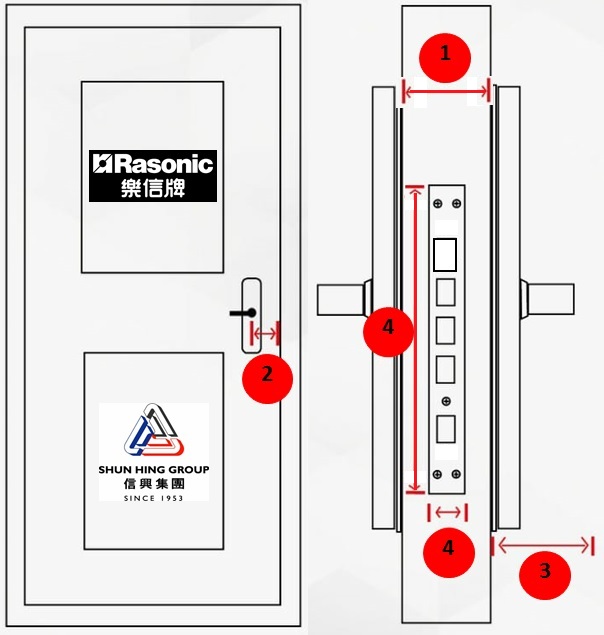

 Diagram on indicator definition and measurement guideline

What kind of door can be installed with Rasonic Smart Lock?
Can be installed in wooden doors, iron doors, bronze doors and security doors.

Can Rasonic Smart Lock be installed on existing door locks?
You can first measure the door thickness and the distance from the center of the lock to the door edge and take pictures (front and side view of the door lock) to the salesperson or installion master to decide whether it is suitable for installation.

If there is a metal gate, is it suitable to install Rasonic Smart Lock?
Pay attention to whether the distance between the metal gate and the door is sufficient enough (more than 75 mm).

How to reserve installation service?
Fill in Online enquiry form

or Fill in Rasonic installation form and fax to： 2408 0316

or Contact customer service hotlines： 2406 5666

What are the precautions for the laser void label on the packaging box?
For security reasons, the laser void label on the packaging box must be opened in front of the installation master; if the customer tears the void label by himself/herself, the company will not be liable for any loss or damage to the product.

If smart lock is malfunction, but mechanical key is inside the house?
In an emergency, if the customer fails to provide the mechanical key and the technician can only unlock it by sabotage, an unlocking fee will be charged. In addition, the company will not be liable for any damage to the product.

What should I do if the power supply is almost out of power?
If the power supply is about to run out, there will be voice and mobile phone application prompts. Please remove the lithium battery and charge it as soon as possible.

What should I do if I am outside the house and the lithium battery is completely out of power?
The door can be opened with a spare mechanical key or use a USB port at the bottom of the lock body outside the door for emergency charging.

Any residential installation cases in Hong Kong?
General private buildings, Home Ownership Scheme, public housing estate, and government dormitories
European style door lock with 24mm faceplate
American door lock with 32mm faceplate
American-style door lock with dual-frame door + 32mm faceplate and dual-frame bracket
100mm Cylindrical door knob lock (need to add front and rear steel plates)

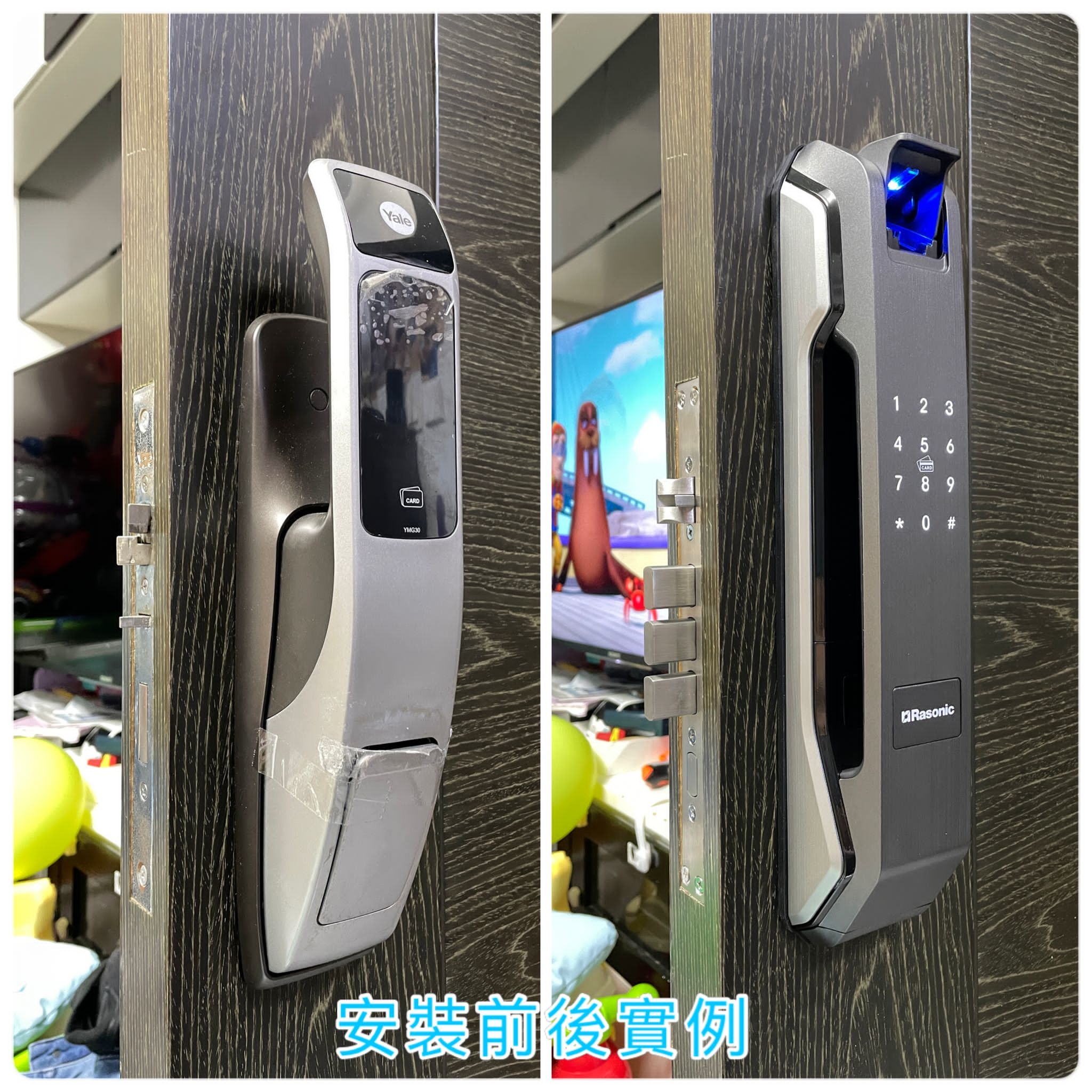

Installation cases for other smart lock brands such as Samsung, Philips, Yale

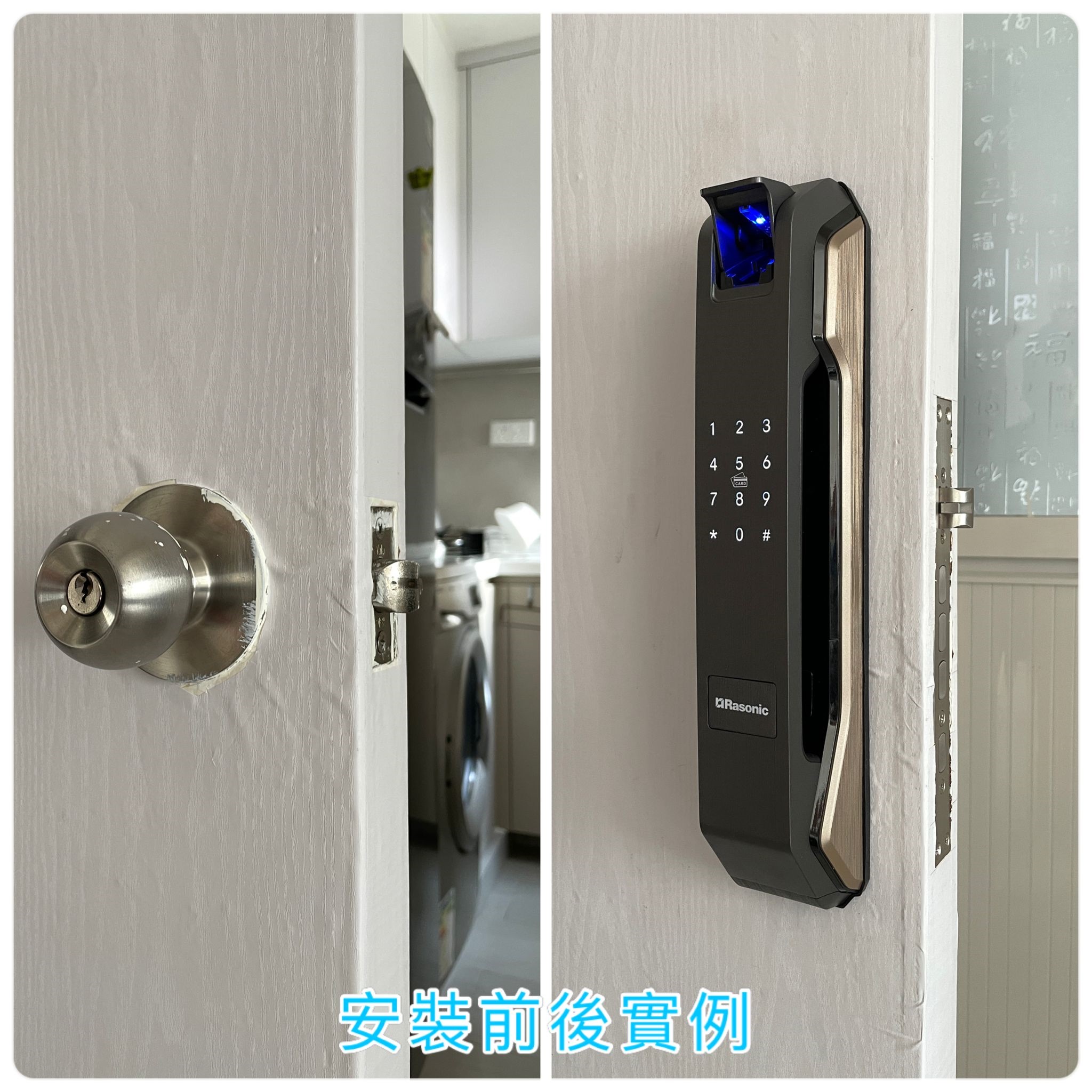

Home Ownership Scheme(Basic installation case)

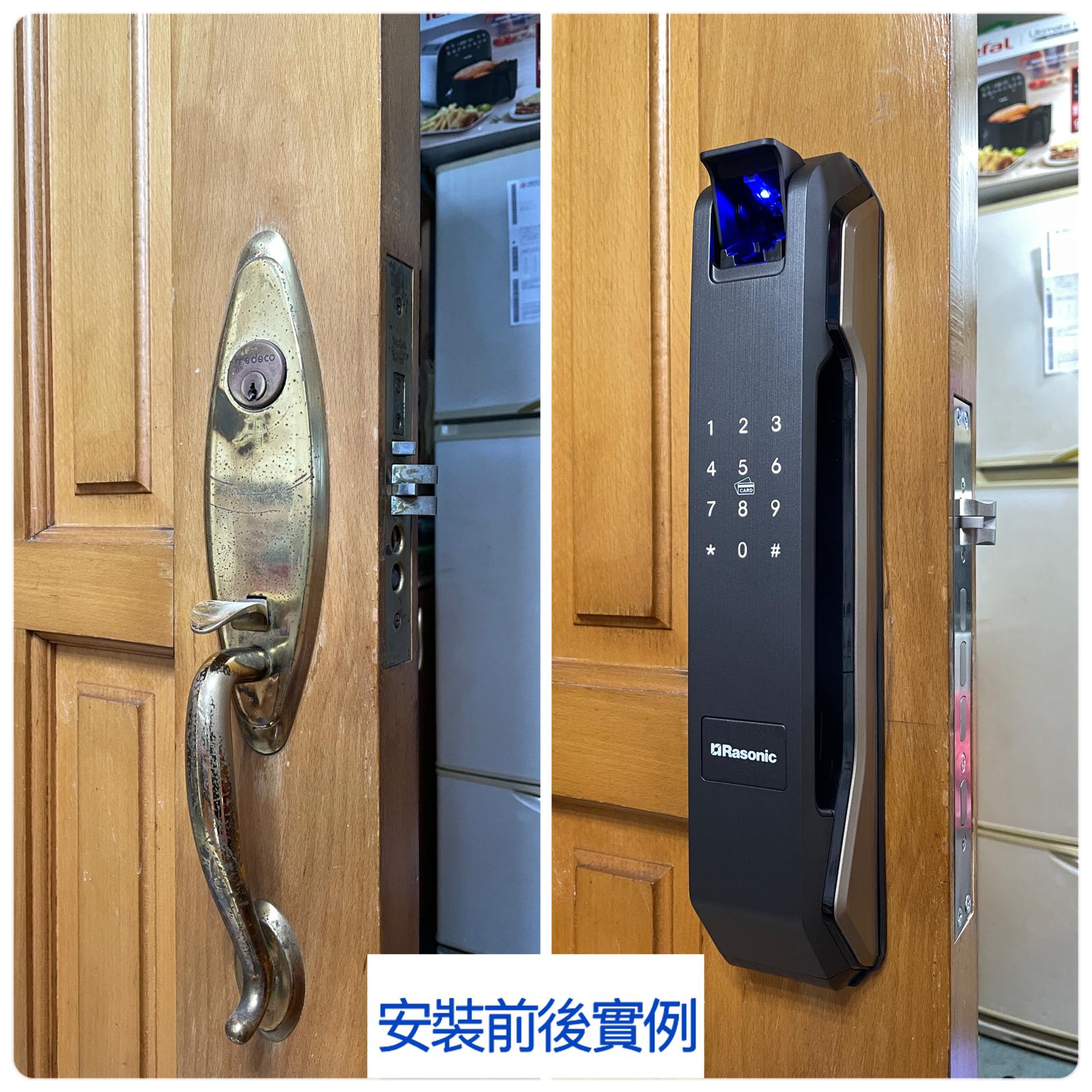

Public Housing Estate(Basic installation + faceplate)

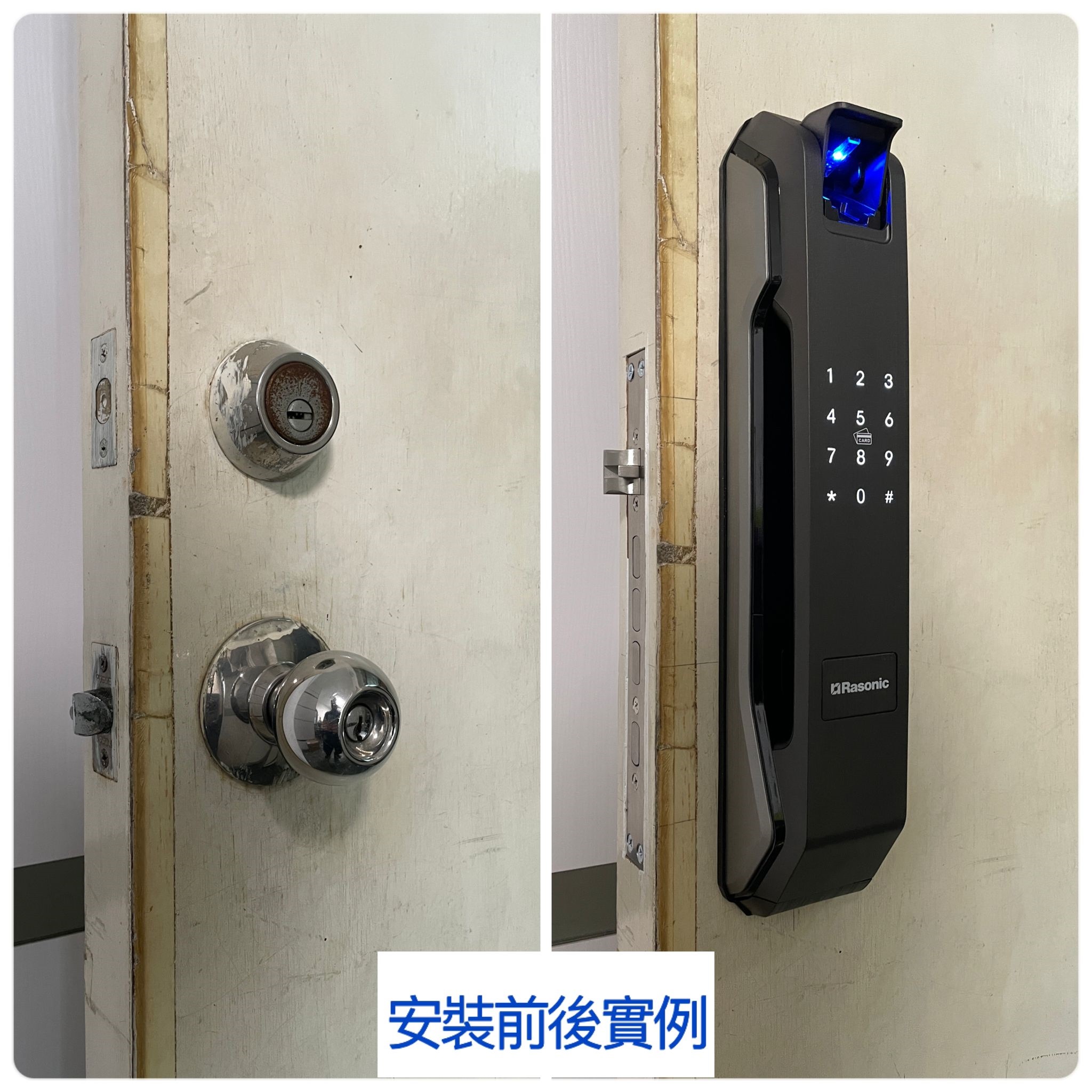

Private Building(Basic installation case)

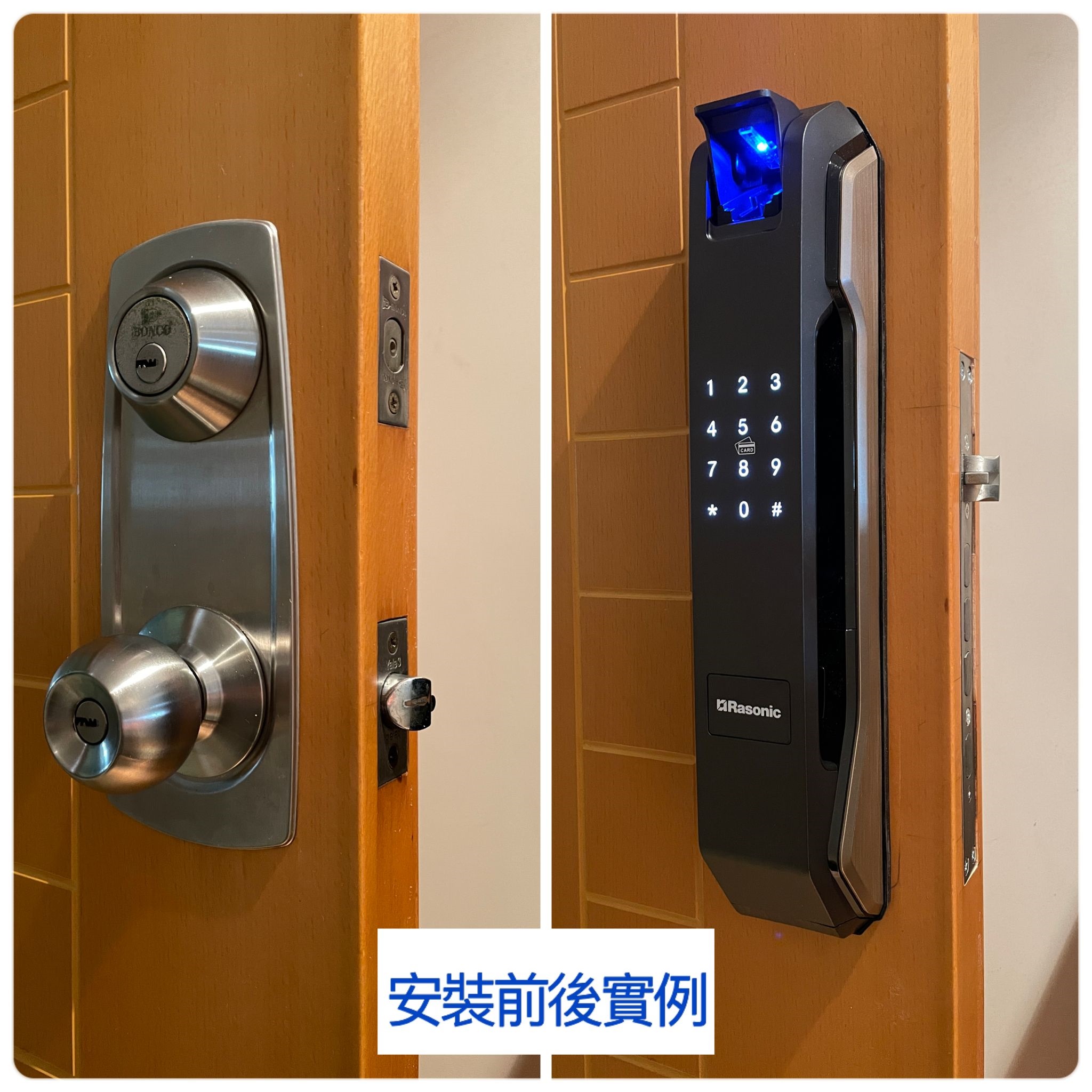

Home Ownership Scheme(Basic installation case)

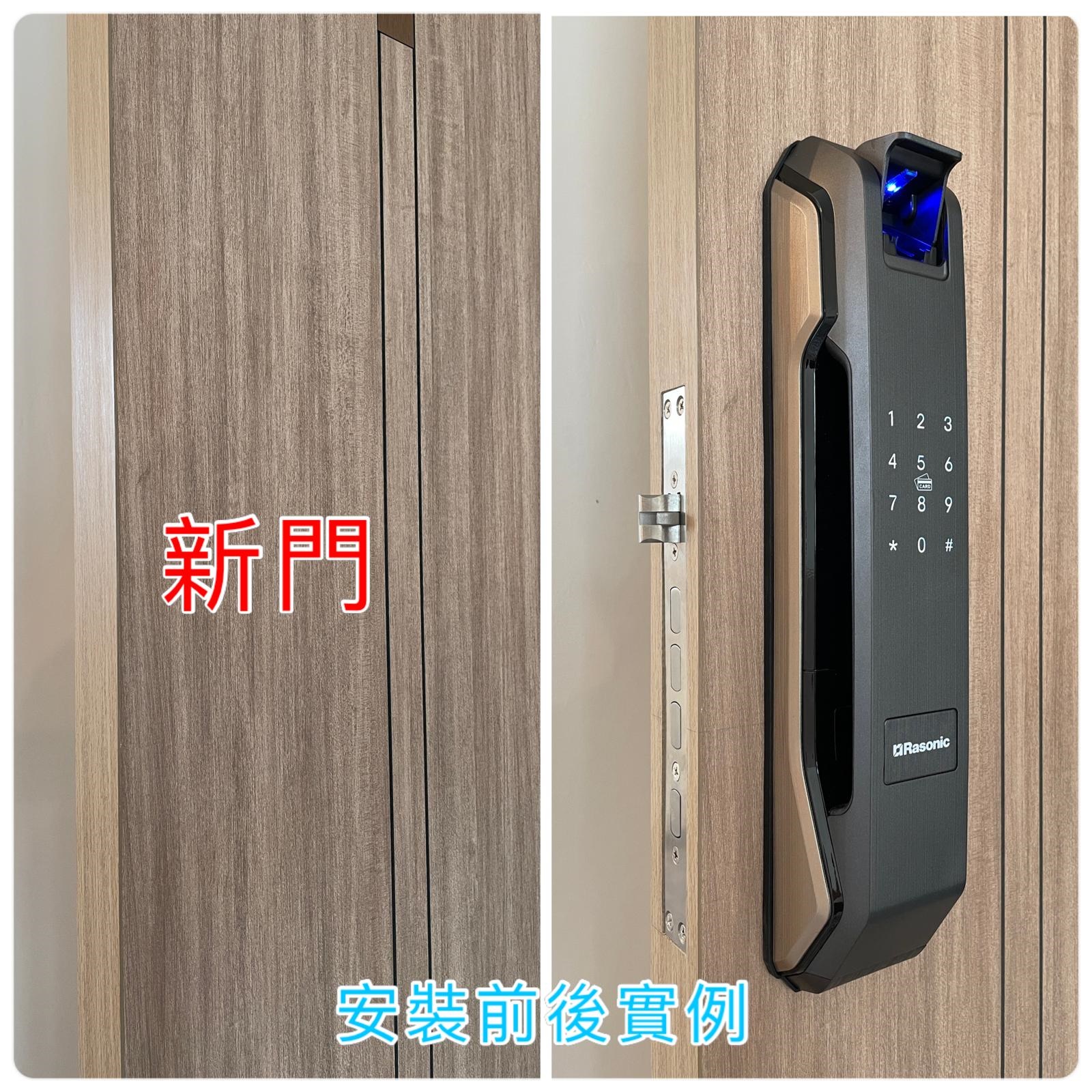

Private Building(Basic installation case)

Home Ownership Scheme(Basic installation case)

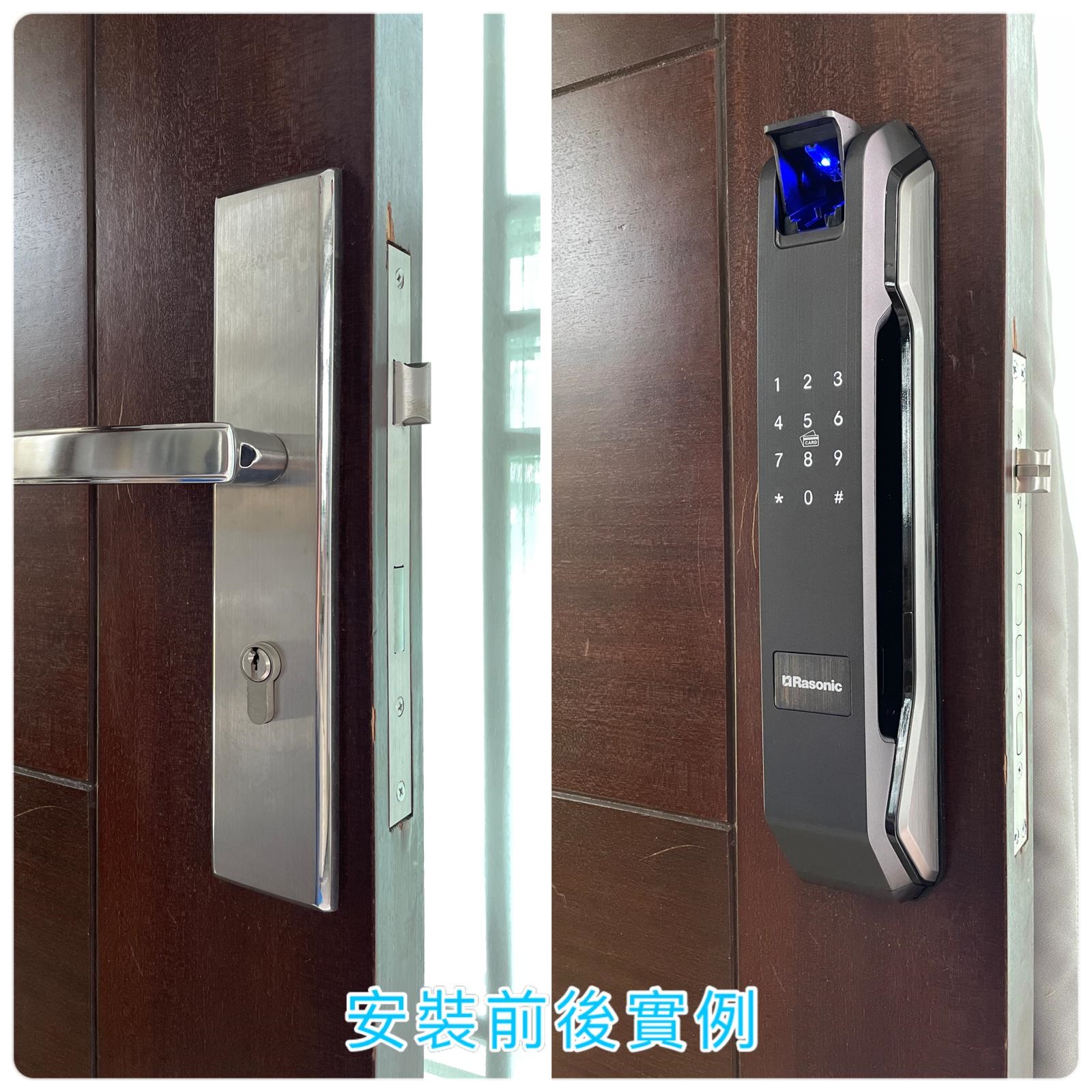

Village House(Basic installation case)

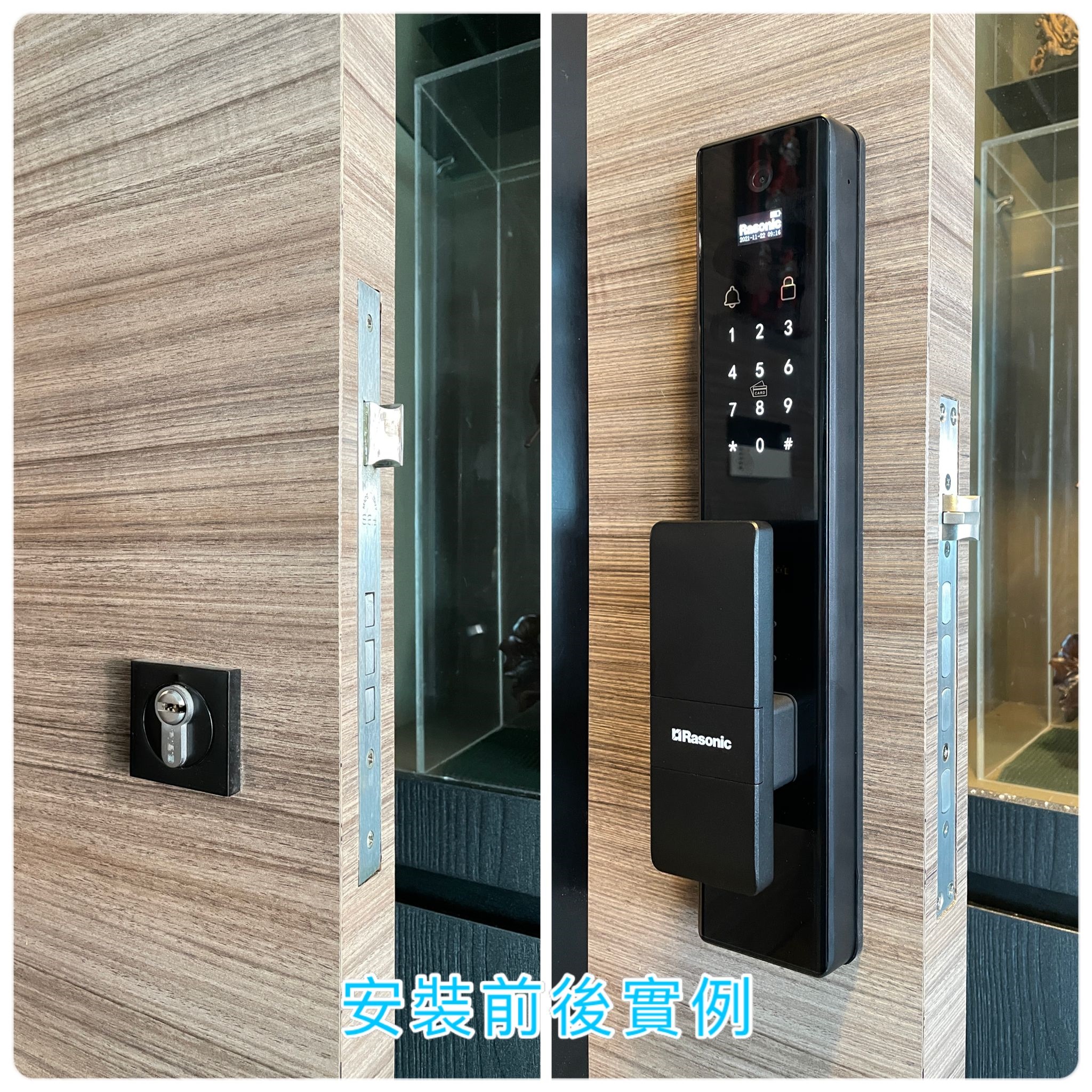

Private Building(Basic installation case)

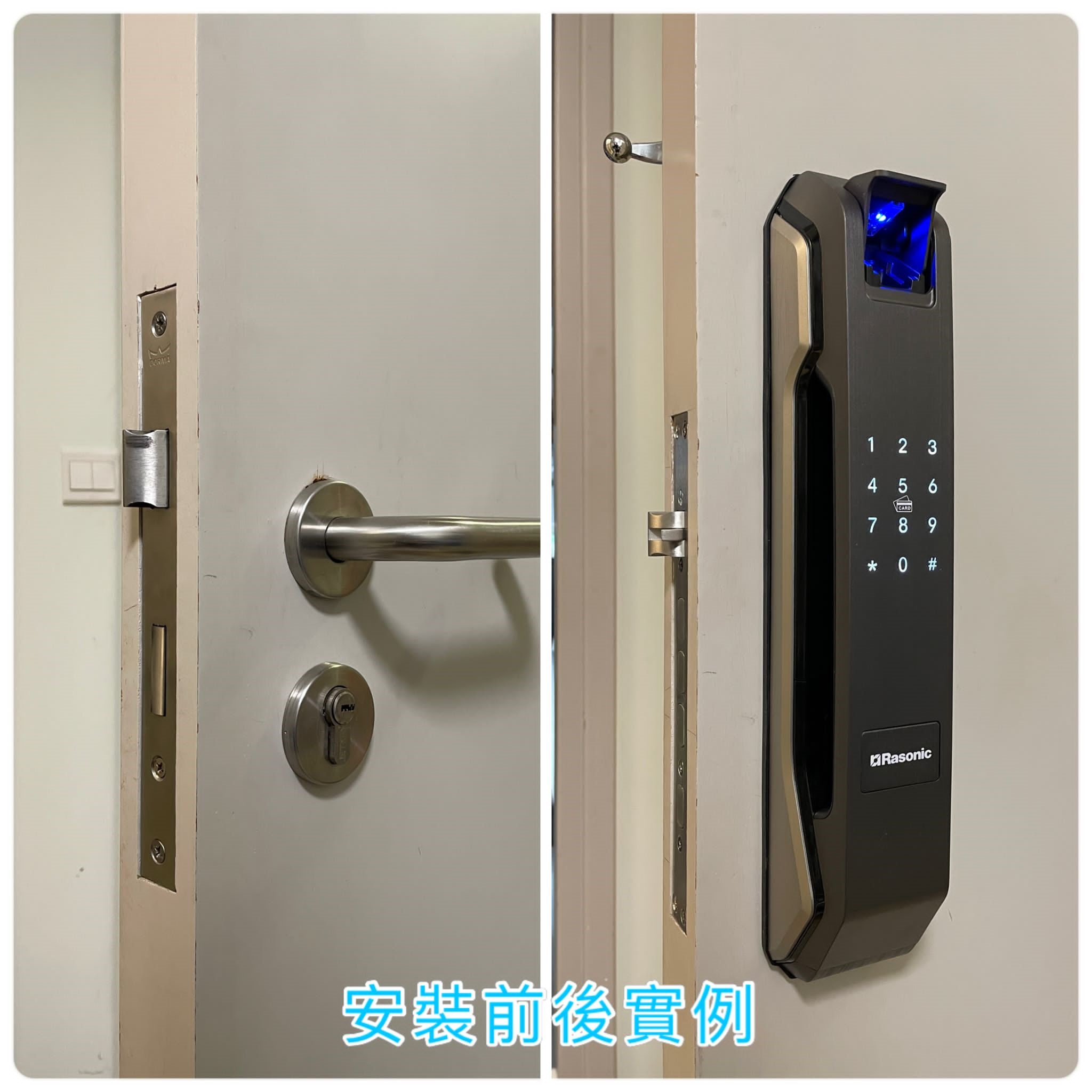

Public Housing Estate(Basic installation)

In case of Wifi configuration failure?
Please check the Wifi password and ensure that the Wifi connected to the device is 2.4G spectrum, and it is recommended that the distance between the device, mobile phone, and router be within 1 meter.

If the automatic lock function fails?
When the door is closed, the user can press and hold the indoor lock button for 5 seconds or press #0# + administrator password + 5#

Where can you buy lithium battery and digital key card of Rasonic Smart Lock?
Shun Hing Electric Service Centre Ltd, consumable / accessories sales hotline: 24065666. The price is subject to the quotation from Shun Hing Electric Service Center Ltd.

Charging and storage of lithium battery?
Suggested charging method: Use a 5V(1A/2A) charger with mirco USB input, the red light indicates that it is charging, and the blue light indicates that it is fully charged. Generally, the battery can be fully charged in 3~5 hours, and it can be recharged about 300 times. It is not recommended to use a fast charger or overnight charging, as there is a chance of damaging the battery.

Storage: If the lithium battery has not been used or idle for six months, it is recommended to recharge it once for every six months.
